Stainless steel slot channel

New: slot channel “C2” with reinforced edges “BCR” third party certified to D400 loading

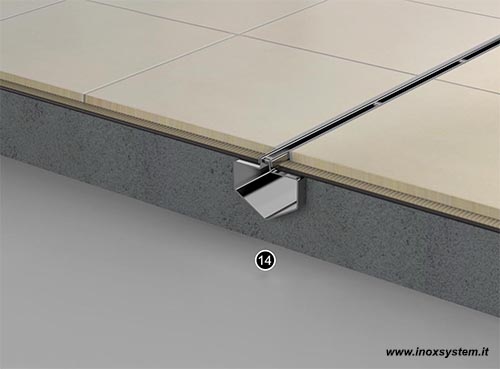

The Inoxsystem® slot channel (also known as slot drain or gutter) are entirely made of stainless steel AISI 304 (or AISI 316 upon request), with a standard thickness of 2mm. Can be fabricated with a "standard" central slot of 20mm, "heel-guard" from 8mm, or other types depending on the needs.
The body of the channel is 70 mm, technically designed to be fully inspected at sight. The construction techniques studied over the years, thanks to our decades of experience in the field, have allowed the creation of an effective system, accessible to vehicles, durable, aesthetic, economical and easy to clean. Able to reach different shapes and lengths with the ability to work with groups of connection flanges every 3 or 6 meters, depending on the transport needs (supplied with fixing screws and silicone sealant), are ideal solutions for the drainage of water and liquids on floors for the construction and food industry, ensuring the best conditions of hygiene in full compliance of the regulations.
Upon request you can have the edges of the channel pre-filled with our special self-attaching rigid resin in order to get the maximum traffic duty and robustness of the product and avoid future problems of channel breakage and subsequent floor cracks due to the passage of heavy vehicles. Always upon request, grafts can be prepared for flushing the channel throughout inlets of ½" with diffuser. The wide range of products with slot proposed by Inoxsystem® allows up to meet the most varied technical needs, offering in addition to the standard items (visible in the site www.inoxsystem.it p. 14 and 15), the creation of numerous custom articles (p. 8,9,11) and waterproof membrane holders (p. 21).

Important: All stainless steel Inoxsystem® products can be made custom, with designed drawings in collaboration with our technicians, able to satisfy the widest range of installation requirements.
