Standard stainless steel slot channels with streight edges, increased section, a 350x350 mm
floor drain with siphoned outlet ø 154 mm and removable filter basket
(See dwg. 1071-1072-1073-1074 on page 32 of our catalogue – not standard)
Installation
example

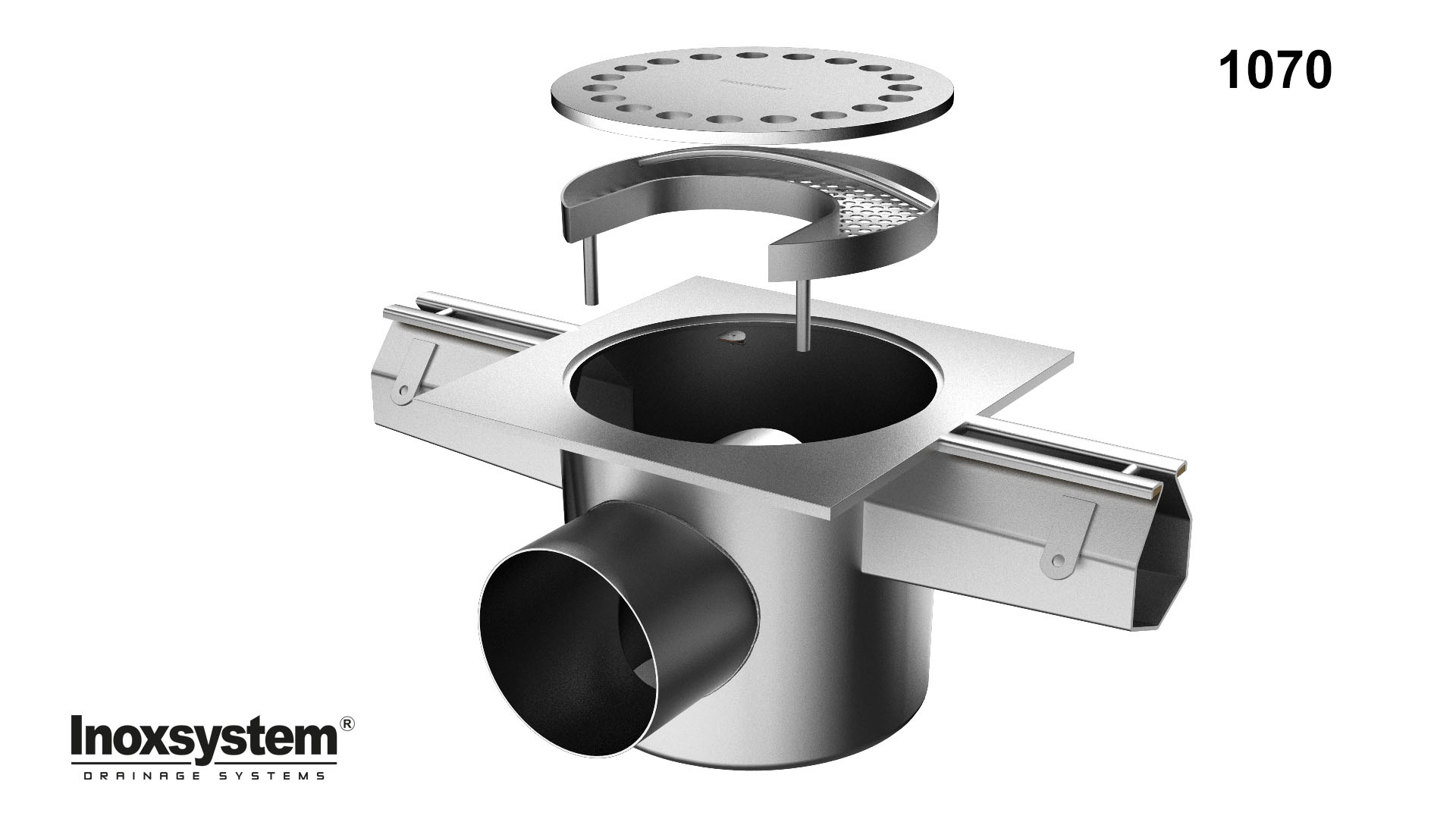

Inoxsystem® Line 1070
Inoxsystem® Drainage system entirely made of grade 304 stainless steel, grade 316 on request, composed of: slot channel with 20 mm wide slot and wider section of 100 mm to drain high volumes of water (art. MC2), sheet thickness 2 mm, fully inspectable with built-in slope and internal radii to improve cleaning performance, mounting brackets to fix the channel into the concrete, reinforcement rods every 250 mm, reinforced edges (art. BCR) filled manually with three-component epoxy resin to make them stress resistant and suitable for heavy duty use and to speed up the laying of the channel, connection flanges (art. FLC.) provided with silicone and fixing screws for easy transport, 350x350 mm gully with 8 mm thick solid top cover to prevent the risk of grating displacement, micro shot peening finishing, with outlet Ø 160, odor trap and removable insect and rat proof filter. The gully should be with vertical outlet (art. CV160CE358) or horizontal outlet (art. CLR160358). Certifications: Inoxsystem® slot channel with reinforced edges (art. MC2+BCR) is third party (Ecamricert s.r.l.) certified to 400 Kn loading - D400 load class in accordance with UNI en 1433 Standard
Spec.
Render 3d
Entirely made of stainless steel AISI 304 (or 316 upon request), with a thickness of 2mm, they are ideal especially for residential buildings, production areas, wineries, dairies, slaughterhouses, fish mongers etc… The body section of the drainage channel is increased to 100mm to ensure that, even in occasions of extraordinary load of water, the conduit is able to provide an effective and safe response. The standard center slot of the channel is 20mm, with a 60mm edge at sight and a channel drainage body of 100mm technically designed to be fully inspected at sight (art. Inoxsystem® MC2 see catalogue at page 8, DWG. 2010). The channel is equipped with a floor drain (also called gully or sump) with a square top at sight of 350x350 mm, plate thickness of 8mm (planned for an high-traffic use, with his appropriate thickness avoids accidental plate bending), with an overall height of 300/400mm and a 154mm Ø outlet pipe with filter basket for waste capturing, considered as insect and rat-proof. The floor drain can have a vertical outlet (Art. Inoxsystem® "CV154358") or an horizontal outlet (Art. Inoxsystem® " CLR154358") which can be positioned at the center, at the head or in a point of the channel defined by the customer. Upon request you can have the edges of the channel pre-filled with our special self-attaching rigid resin (Art. Inoxsystem ® "BCR") in order to get the maximum traffic duty and robustness of the product and, thanks to the groups of connection flanges every 3 or 6 meters, depending on the transport needs (Art. Inoxsystem ® "FLC") can be produced custom with various lengths. We can also provide grafts for flushing of channel with diffusers ½” (art. Inoxsystem® “IL”).
Important: All stainless steel Inoxsystem® products can be made custom, with designed drawings in collaboration with our technicians, able to satisfy the widest range of installation requirements.
