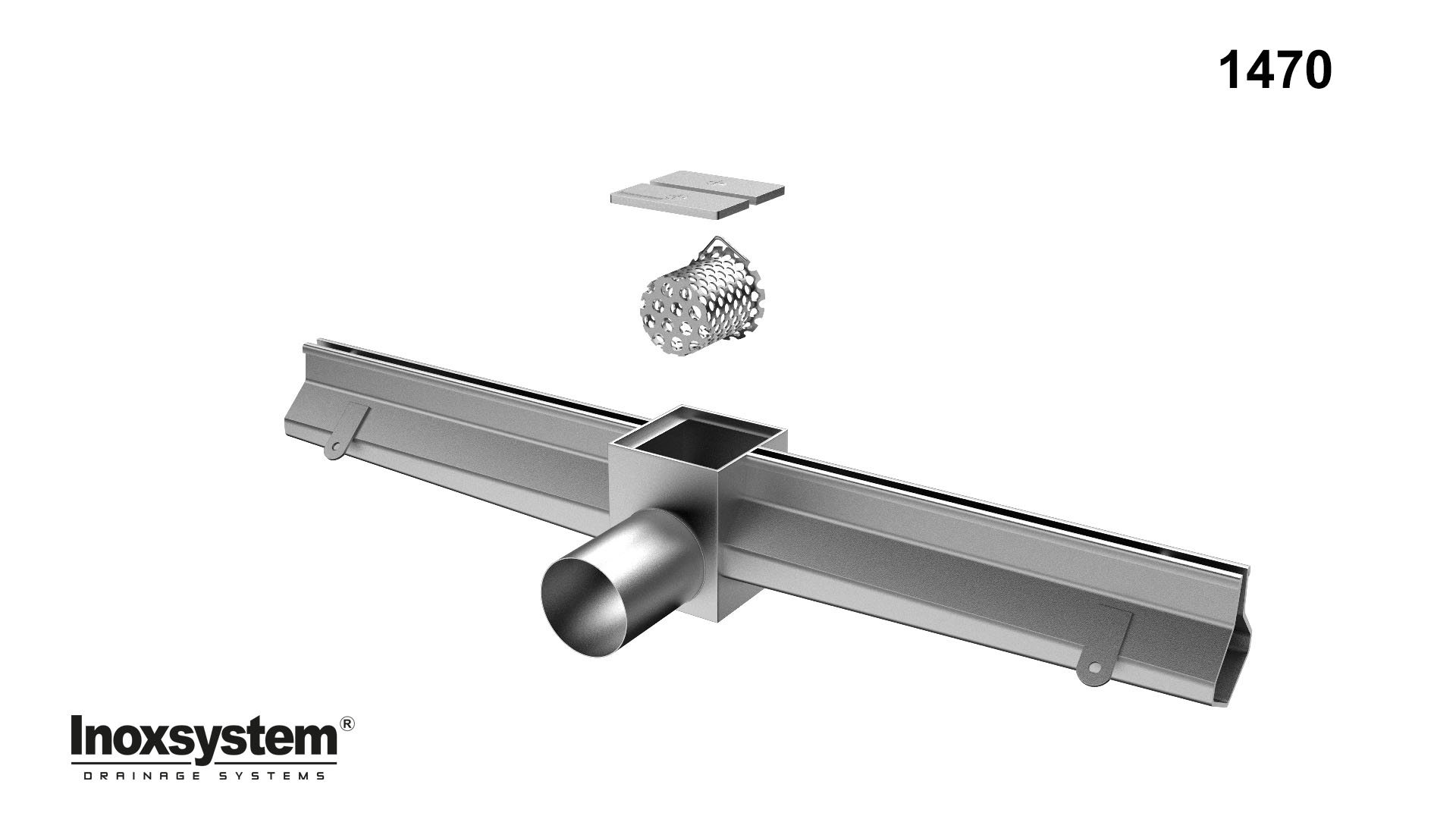

Slot channels with 20/15/8 mm wide central slot, vertical edges and 80x80 mm inspection unit with satin finish cover and direct outlet without odor trap
(See Dwg. 1471 – 1472 – 1473 - 1474 General Catalogue, page 36)
Installation
example
Inoxsystem® Line 1470
Inoxsystem® Drainage system entirely made of grade 304 stainless steel, grade 316 on request, composed of: 65 mm wide hidden slot channel with with anti-clogging vertical edges and 8 mm heelsafe slot (art. C1BDV), sheet thickness 2 mm, fully inspectable with built-in slope and internal radii to improve cleaning performance, mounting brackets to fix the channel into the concrete, reinforcement spacers every 250 mm, connection flanges (art. FLC.) provided with silicone and fixing screws for easy transport, 80X80 mm access unit with vertical direct outlet (art. CCV80) or horizontal direct outlet (art. CCL80) Ø 63 mm and insect and rat proof removable filter, h 100 mm. Access cover with central slot.
Spec.

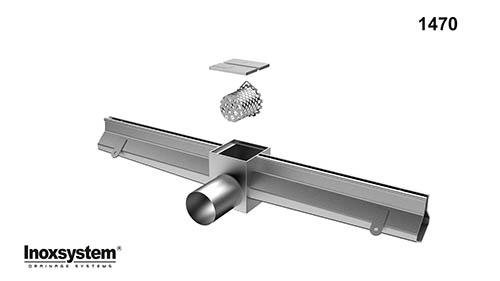

Render 3d
Entirely made of 2 mm thick stainless steel, grade 304 (grade 316 on request), slot channels with vertical edges are available with 20 mm wide standard slot (art. Inoxsystem® C2BDV), 15 mm wide intermediate slot (art. Inoxsystem® “C15BDV”) or 8 mm wide heel-safe slot (art. Inoxsystem® “C1BDV”).
The system is used with paving units laid against the top edge of the channel and the end result is an open slot, tapered to prevent blockage, with no visible stainless steel. Besides central slot, offset slot is salso available to enable drainage location adjacent to walls.
The body of the channel is 65 mm wide, fully inspectable. The 80x80 mm access unit, 100 mm depth, is provided with a satin finish cover with a slot into its center (non-stop slot effect) and a vertical or horizontal outlet Ø 63/50 mm with insect and rat proof filter basket, in the center, at one end or off-centre if needed.
The possibility of assembling the different sections with bolted flange connections (Inoxsystem® art. “FLC”) every 3 or 6 m provides many possible combinations, according to any customers’ specifications.
On request, the channel can be provided with ½” inlet socket to let water flush in and clen the channel (art. Inoxsystem® “IL”).
Important: All stainless steel Inoxsystem® products can be made custom, with designed drawings in collaboration with our technicians, able to satisfy the widest range of installation requirements.
