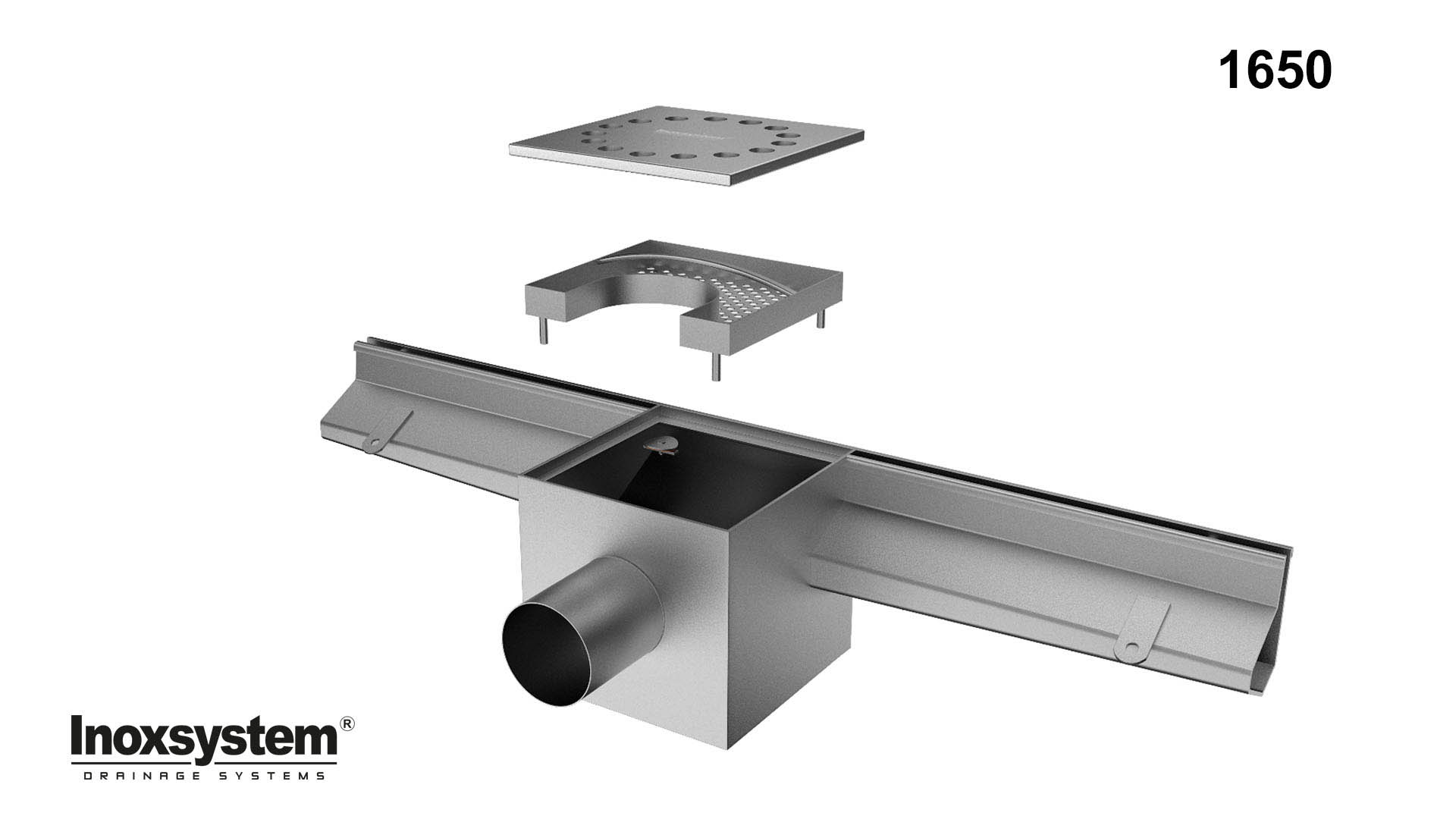

Slot channels with 20/15/8 mm wide lateral slot with vertical edges and 150x150 mm floor drain with odor trap and satin finish cover in stainless steel
(See Dwg. 1651 – 1652 – 1653 - 1654 General Catalogue, page 37)
Installation
example
Inoxsystem® Line 1650
Inoxsystem® drainage system entirely made of grade 304 stainless steel, grade 316 on request, composed of: hidden slot channel with with 8 mm heelsafe slot and anti-clogging vertical lateral edges (art. C1BDVL) which can be placed against the wall, sheet thickness 2 mm, width 65 mm, fully inspectable with built-in slope and internal radii to improve cleaning performance, mounting brackets to fix the channel into the concrete, reinforcement rods every 250 mm, connection flanges (art. FLC) provided with silicone and fixing screws for easy transport, 150x150 mm gully with 6 mm thick solid top cover to prevent the risk of grating displacement, micro shot peening finishing, with outlet ø 63, odor trap and removable insect and rat proof filter, h 140. the gully should be with vertical outlet (art. RCV63156S) or horizontal outlet (art. CLR63156S).
Spec.
Render 3d
Entirely made of 2 mm thick stainless steel, grade 304 (grade 316 on request), slot channels with vertical edges are available with 20 mm wide standard slot (art. Inoxsystem® C2BDV), 15 mm wide intermediate slot (art. Inoxsystem® “C15BDV”) or 8 mm wide heel safe slot (art. Inoxsystem® “C1BDV”). They have been developed to enable drainage location adjacent to walls.
The system is used with paving units laid against the top edge of the channel and the end result is an open slot, tapered to prevent blockage, with no visible stainless steel. Besides offset slot, central slot is also available.
The body of the channel is 65 mm wide, fully inspectable. The channel is provided with a 150x150 mm or 200x200 mm floor drain with odor trap and filter basket, depth 140 mm, Ø 63/50 mm, vertical or horizontal outlet installed in the center, at one end or off-centre if needed, with insect and rat proof filter basket.
The possibility of assembling the different sections with bolted flange connections (Inoxsystem® art. “FLC”) every 3 or 6 m provides many possible combinations, according to any customers’ specifications.
On request, the channel can be provided with ½” inlet socket to let water flush in and clen the channel (art. Inoxsystem® “IL”)
Important: All stainless steel Inoxsystem® products can be made custom, with designed drawings in collaboration with our technicians, able to satisfy the widest range of installation requirements.
