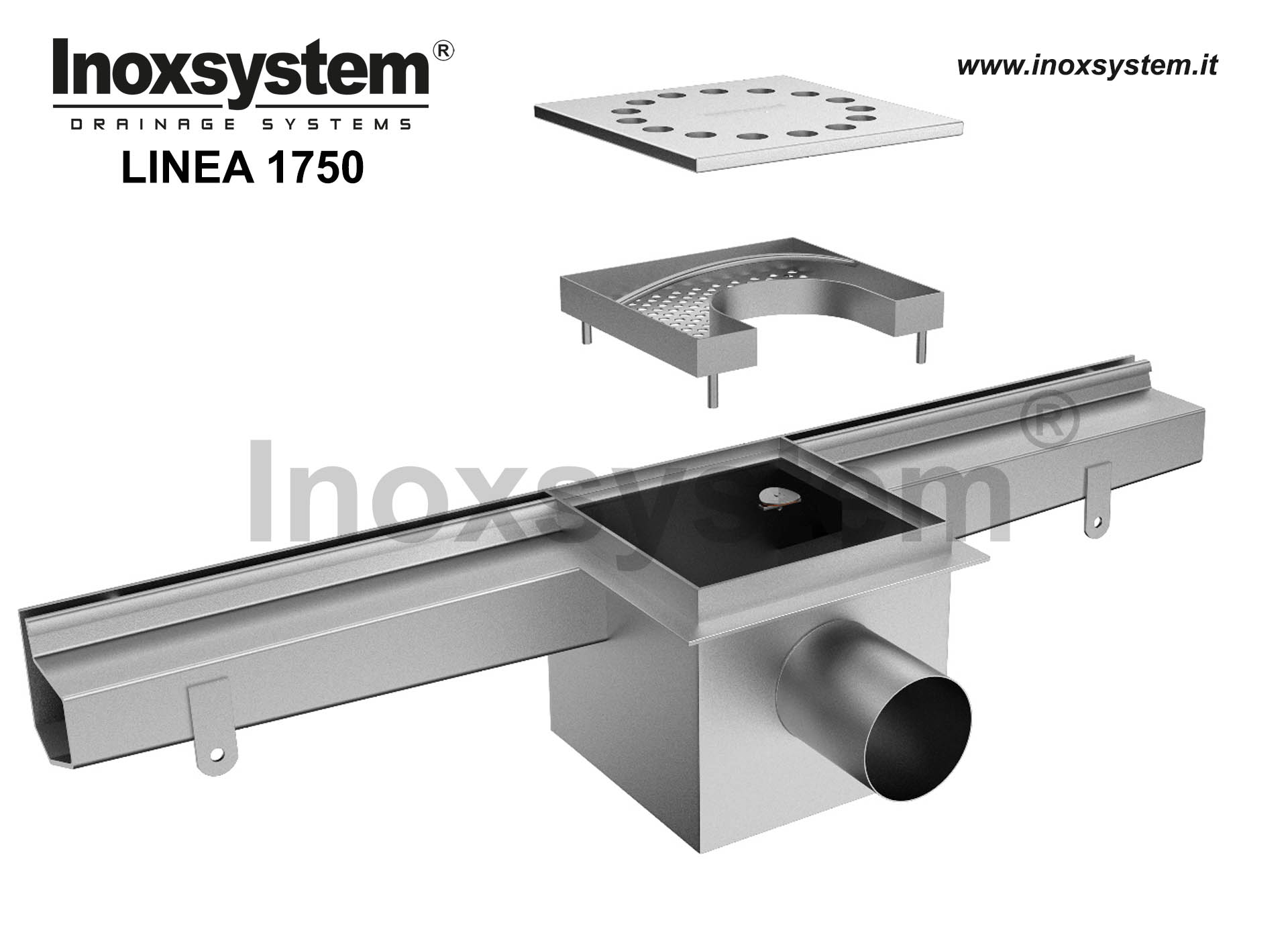

Channel with 8/15/20 mm offset slot, vertical edges and flat top surface for floor tile installation, 150x150 mm floor drain with odor trap and removable filter in stainless steel
Hidden slot channel with minimum visual impact entirely made of stainless steel grade 304 (grade 316 upon request), sheet thickness 1,5 mm, with tear drop hem, ideal for terraces, swimming pools, porches and outdoor showers. An effective yet discreet drainage solution.
The offset slot, which enables drainage location adjacent to walls, can be 20 mm wide (standard - Inoxsystem® article C2BDV), 15 mm wide (medium - Inoxsystem® article C15BDV), 8 mm wide (heelsafe - Inoxsystem® article C2BDV) tapered to prevent blockage.
Central slot is also avaible (see line 1550)
The main difference between this line and line 1650 lies in the channel width which is 70 mm and also in its shape that allows waterproof membrane application.
The channel is equipped with a floor drain with satin finish top cover, odor trap and anti rats and insect-proof filter basket. Central or end outlet (also offset on request) can be vertical or horizontal, standard diameter 63/50 mm (customisable on request). External dimensions 150x150 mm or 200x200 mm, overall height 140 mm.
½” inlet socket to let water flush in and clean the drain (Inoxsystem® article “IL”) available on request.
Important: All stainless steel Inoxsystem® products can be made custom, with designed drawings in collaboration with our technicians, able to satisfy the widest range of installation requirements.
