Stainless steel heelguard reduced slot channel with 80x80 mm inspection gully, no-siphoned direct outlet and removable filter baske
(See dwg. 1151-1152-1153-1154, on page 33 of the catalogue)
Installation
example
Inoxsystem® Line 1150
Inoxsystem® Drainage system entirely made of grade 304 stainless steel, grade 316 on request, composed of: 60 mm wide slot channel with 8 mm heelsafe slot (art. C1), fully inspectable with built-in slope and internal radii to improve cleaning performance, mounting brackets to fix the channel into the concrete, reinforcement rods every 250 mm, reinforced edges (art. BCR) filled manually with three-component epoxy resin to make them stress resistant and suitable for heavy duty use and to speed up the laying of the channel, connection flanges (art. FLC) provided with silicone and fixing screws for easy transport, 80X80 mm access unit with vertical direct outlet (art. CCV80) or horizontal direct outlet (art. CCL80) Ø 63 mm and insect and rat proof removable filter, h 100 mm.
Spec.

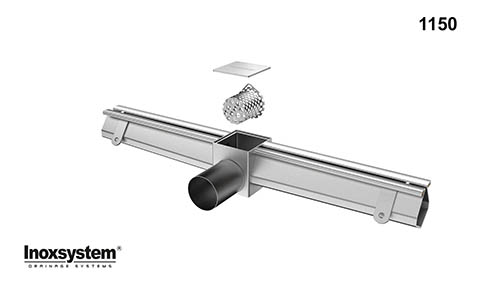

Render 3d
Entirely made of stainless steel AISI 304 (or 316 on request), thickness of 1.5 mm, this line of products are ideal especially for locker rooms, swimming pools, showers, terraces and in wider terms all public departments with limited installation space in the screed coat of the floor. The standard measures on catalogue are 1080mm, 2080mm and 3080mm and are available in a very short time. The center slot of the channel is standard 8mm, with a 50mm edge at sight and a channel drainage body of 65mm technically designed to be fully inspected at sight (art. Inoxsystem® C1 see catalogue at page 8, DWG. 2010). The slot channel is complete with a square gully 80x80 mm (also called floor drain or sump), with total lowered height of 100mm and a direct non-siphoned outlet of 63mm Ø and a filter basket, considered as insect and rat-proof. The floor drain can have a vertical outlet (Art. Inoxsystem ® "CCV") or an horizontal outlet (Art. Inoxsystem ® "CCL") and can be positioned at the center, at the head or in a point of the channel defined by the customer.
Upon request you can have the edges of the channel pre-filled with our special self-attaching rigid resin (Art. Inoxsystem ® "BCR") in order to get the maximum traffic duty and robustness of the product and, thanks to the groups of connection flanges every 3 or 6 meters, depending on the transport needs (Art. Inoxsystem ® "FLC") can be produced custom with various lengths. We can also provide grafts for flushing of channel with diffusers ½” (art. Inoxsystem® “IL”).
Important: All stainless steel Inoxsystem® products can be made custom, with designed drawings in collaboration with our technicians, able to satisfy the widest range of installation requirements.
