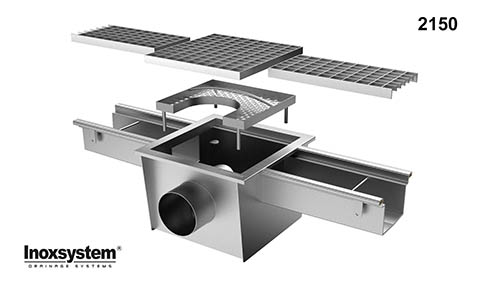

Made of stainless steel AISI 304 (or AISI 316 upon request), thickness of 2 mm. Ideal especially for kitchens, restaurants and food preparation areas in general, or cellars, warehouses, production halls etc.. The cover grating can be standard with a 25x22 mesh, heel-guard 50x11 mesh, heavy bars 25x8 and double slot with surface in 6mm plate. The dimensions can vary depending on the needs of the customer. The channel (usually with a width of 150 or 200mm at sight, inclusive of grating and side edges) is complete with gully (also referred to as floor drain or sump) bigger in dimensions then the channel (usually 300x300 mm) and then with a greater inspection, total height at the cup’s base of 220mm, a 110mm Ø siphoned outlet and a filter basket for waste recovery, considered as insect and rat-proof. The gully, also in stainless steel, can have a vertical outlet (Art. Inoxsystem® "PGV") or an horizontal outlet (Art. Inoxsystem® "PGO") and can be positioned at the center, at the head or in a point of the channel defined by the customer.
Upon request you can have the edges of the channel pre-filled with our special self-attaching rigid resin (Art. Inoxsystem ® "BCR") in order to get the maximum traffic duty and robustness of the product and, thanks to the groups of connection flanges every 3 or 6 meters, depending on the transport needs (Art. Inoxsystem ® "FLC") can be produced custom with various lengths. We can also provide grafts for flushing of channel with diffusers ½” (art. Inoxsystem® “IL”).

Important: All stainless steel Inoxsystem® products can be made custom, with designed drawings in collaboration with our technicians, able to satisfy the widest range of installation requirements.
