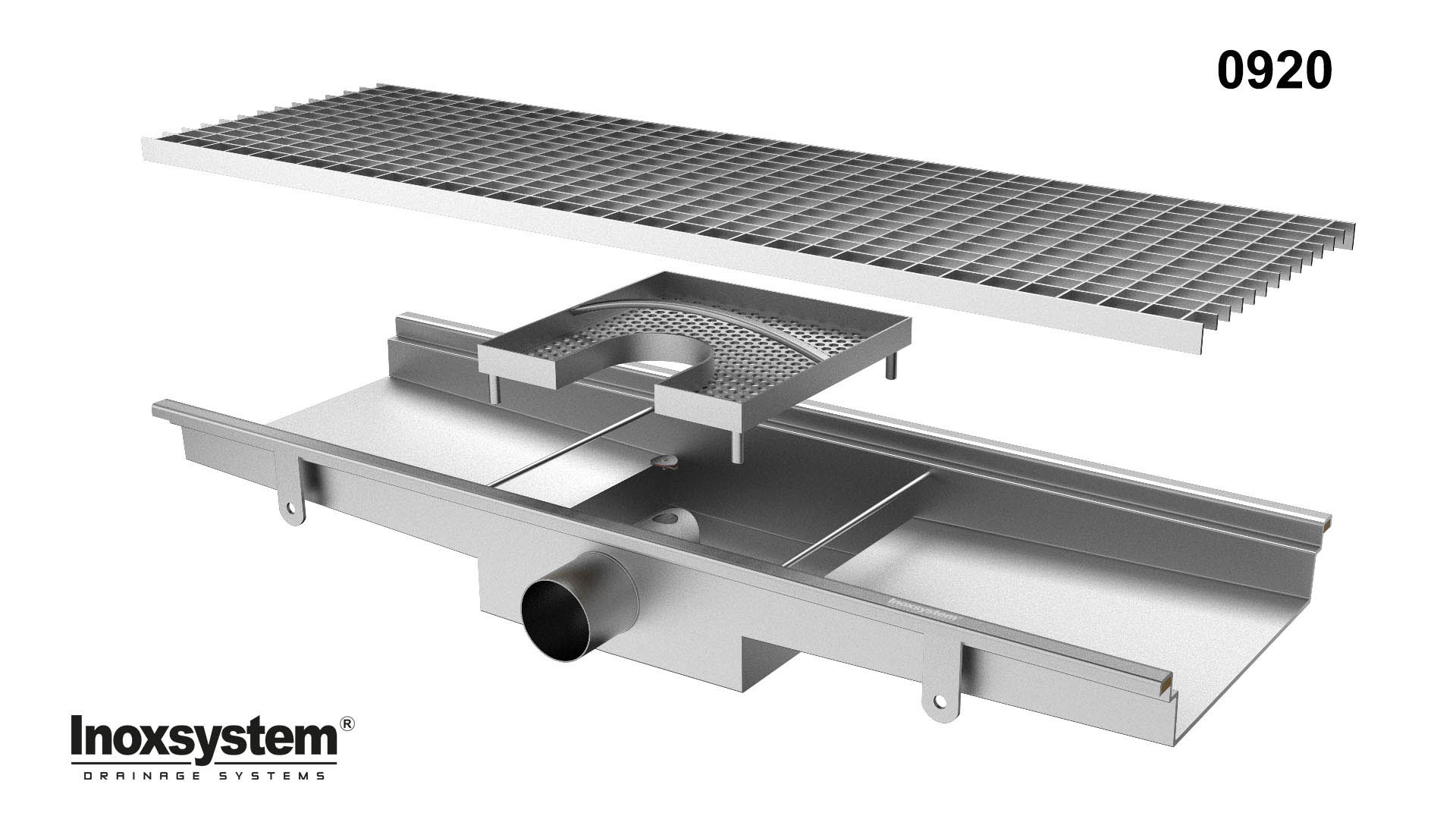

Channels with standard grating with low profile rectangular floor drain, odor trap and removable filter basket in stainless steel
(See Dwg. 0922-0923-0924-0925 General Catalogue, page 27)
Installation
example
Inoxsystem® Line 0920
Inoxsystem® Drainage system entirely made of grade 304 stainless steel, grade 316 on request, composed of: 2 mm thick channel body with grating (art. CGS…) fully inspectable with built-in slope and internal radii to improve cleaning performance, mounting brackets to fix the channel into the concrete, closely spaced reinforcement rods, removable grating mesh 25x22 mm- h 25 mm, reinforced edges (art. BGR) filled manually with three-component epoxy resin to make them stress resistant and suitable for heavy duty use and to speed up the laying of the channel, connection flanges (art. FLG) provided with silicone and fixing screws for easy transport, welded on cube-shaped gully with outlet Ø 63, odor trap and removable filter. The gully should be with vertical outlet (art. PSV) or horizontal outlet (art. PSO) Certifications: Inoxsystem® channel body without grating with reinforced edges (art. CGS…+BGR) third party (Ecamricert s.r.l.) certified to 400 Kn loading - D400 load class in accordance with UNI en 1433 Standard. 200 mm wide Inoxsystem® channel body with reinforced edges and heavy duty ladder grating, bars 25x8 mm, (art. CGS20025+G0851+BGR) third party (Ecamricert s.r.l.) certified to 400 Kn loading - D400 load class in accordance with UNI en 1433 Standard
Spec.

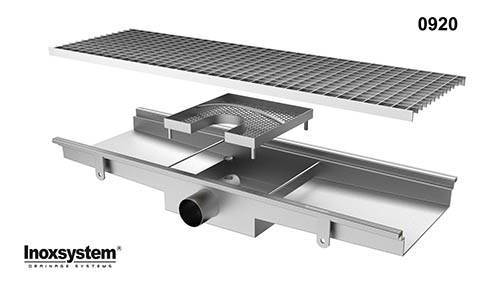

Render 3d
Entirely made of 2 mm thick stainless steel, grade 304 (grade 316 on request), these channels are recommended for commercial kitchens and food processing facilities where installation height is limited and can be provided with standard grating (mesh 25x22 mm), heel safe grating (mesh 50x11) mm, heavy duty ladder grating (25x8 mm bars) and 6 mm thick plate grating.
The low profile floor dain is welded on the body of the channel (not visible once installed in the floor) in the center, at one end or off-centre if needed. Different heights available according to installatio requirements.
The outlet pipe can be vertical (art. Inoxsystem® “RPSV”) or horizontal (art. Inoxsystem® “RPSO”), Ø 63 mm or different on request, with insect and rat proof filter basket.
Epoxy filled edges on request in order to improve durability and robustness.
The possibility of assembling the different sections with bolted flange connections (Inoxsystem® art. “FLC”) every 3 or 6 m provides many possible combinations, according to any customers’ specifications.
On request, the channel can be provided with ½” inlet socket to let water flush in and clen the channel (art. Inoxsystem® “IL”)
Important: All the stainless steel products manufactured by Inoxsystem® can be made custom, with technical drawings developed in collaboration with our technicians able to satisfy the widest range of installation requirements.
