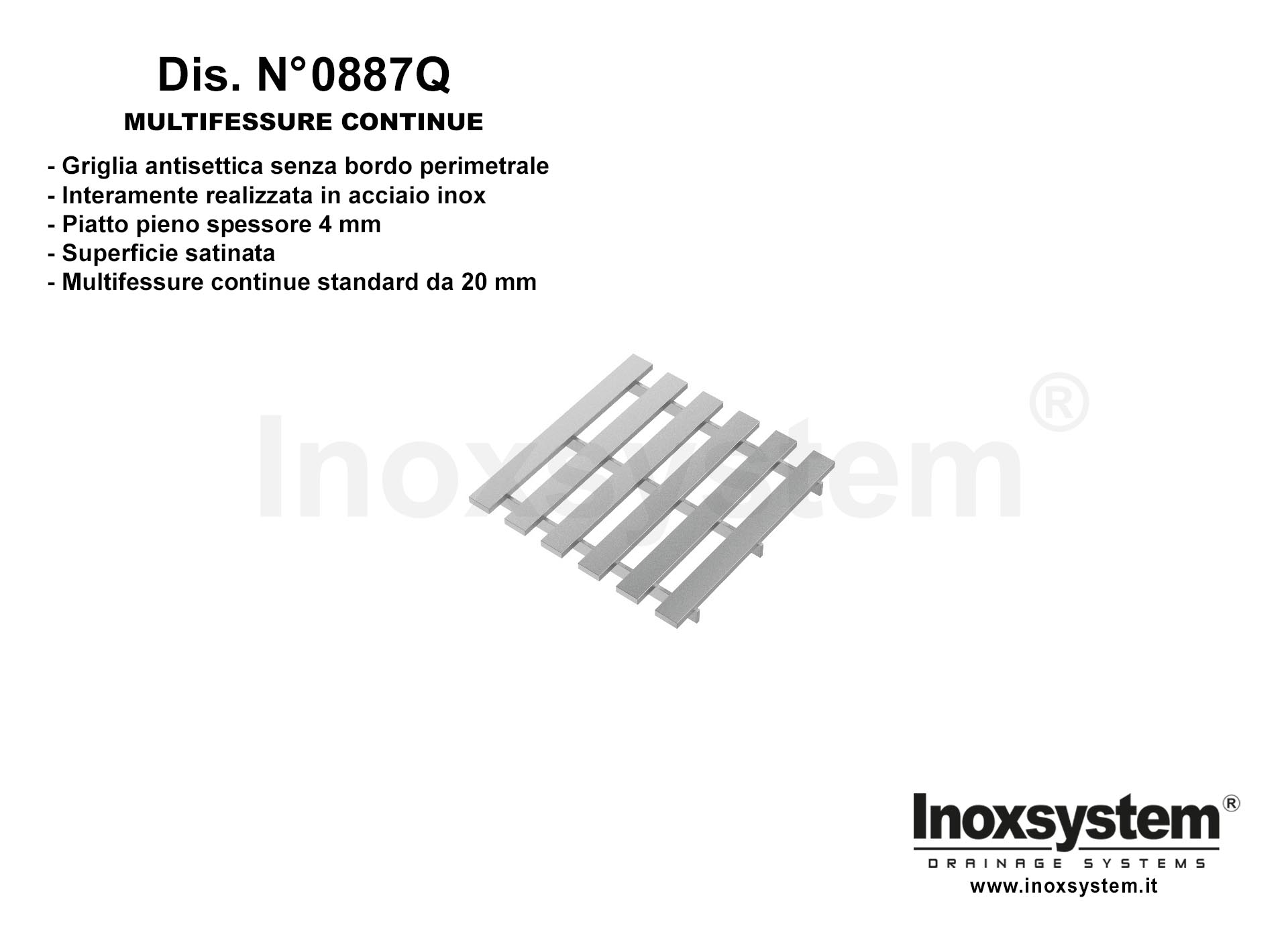

Linear and square Dwg. N° 0887 Multislot design grating with 8 mm thick bars and 20 mm slots in stainless steel
Dwg. N° 0887 - applicable on all Inoxsystem® channel and grated gullies articles
Technical specifications of multiple slot standard gratings:
- Continuous visible bars 25x8
- Bearing square bar 16x16, distance between square bars 200 mm
- Mesh width up to 20 mm (varies according to the width)
- Height 24 mm
- In pieces of 1000 mm
- Finishing treatment: inox micro shot peening and/or mechanical pickling
- Entirely built in AISI 304 (or AISI 316 upon request) stainless steel
Recommended for civil, industrial and food sectors.
Designed to walking areas or light- medium loads
Aesthetically pleasing.
Important: Inoxsystem ® stainless steel gratings can be customized upon request with construction drawings studied in collaboration with our technicians. They can satisfy the most varied installation requirements.
